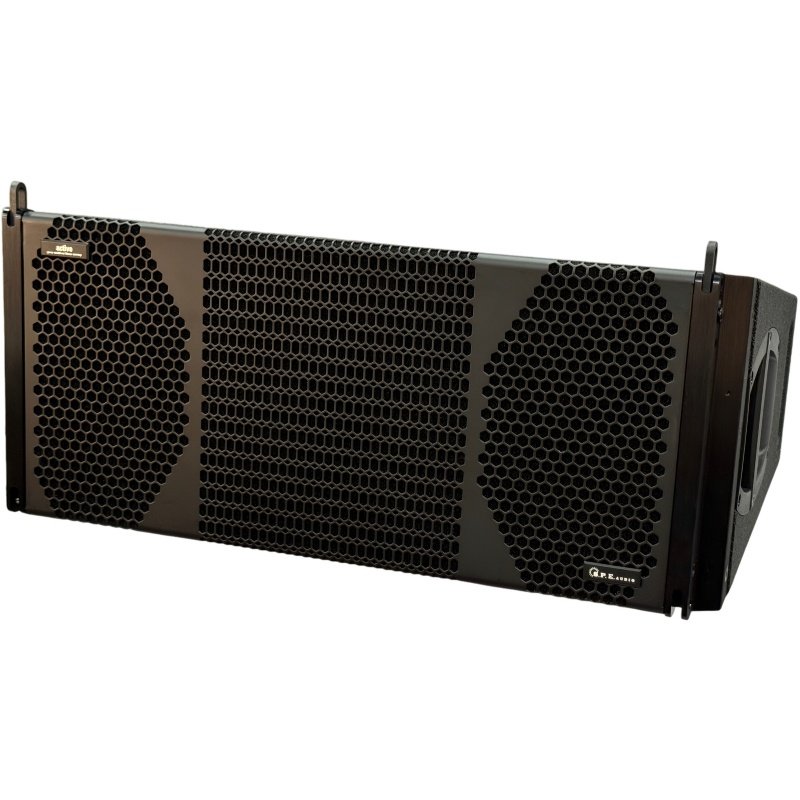

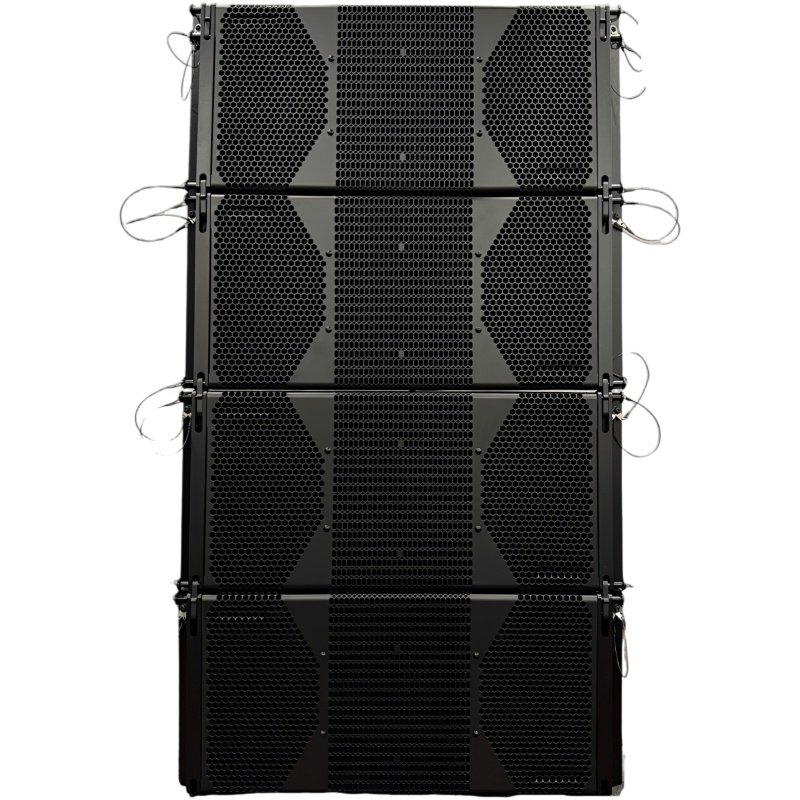

V-280A – Active 2-Way Line Array Speaker
- Type: Active 2-way line array speaker

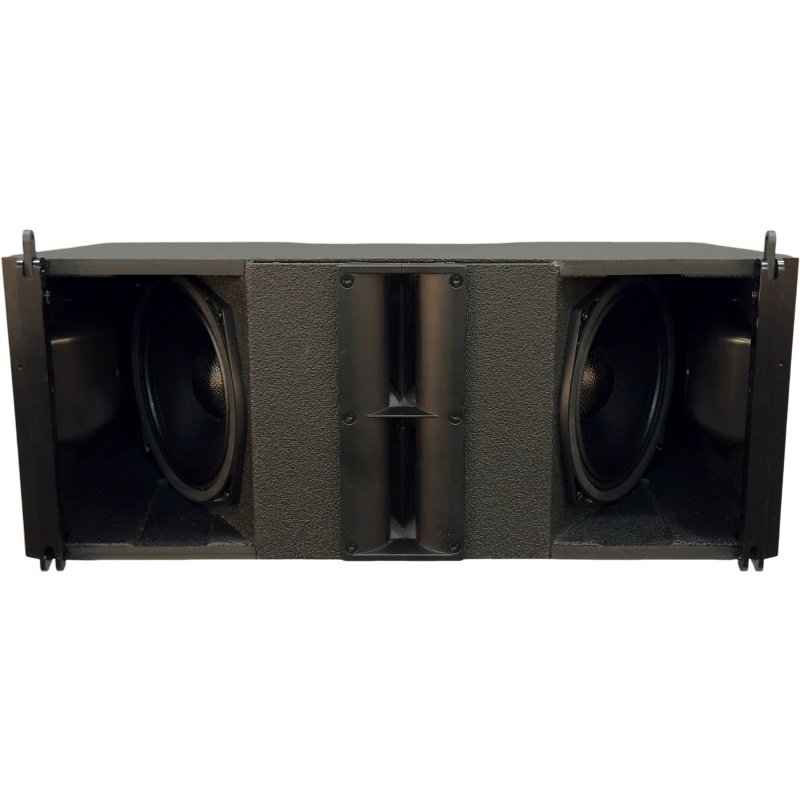

- Low Frequency: 2 × 8″ neodymium magnet woofers
- High Frequency: 2 × 1″ titanium diaphragm compression drivers
- Power Rating (RMS): 500 W (LF: 500 W, HF: 500 W)
- Peak Power: 1000 W
- Impedance: LF: 4 Ω, HF: 16 Ω
- Built-in Amplifier: 2 × 1200 W Class D digital amplifier
- Frequency Response: 70 Hz – 20 kHz (-10 dB)
- Maximum SPL: 137 dB peak
- Coverage Angle: Horizontal 100°, Vertical 15°
- Built-in DSP: 96 kHz, 32-bit processing
- Control: RDNET remote monitoring and system management
- Enclosure Material: Birch plywood
- Dimensions (H × W × D): 256 × 635 × 375 mm
- Weight: 19 kg
V-280 – Passive 2-Way Line Array Speaker
- Type: Passive 2-way line array speaker
- Low Frequency: 2 × 8″ neodymium magnet woofers
- High Frequency: 2 × 1″ titanium diaphragm compression drivers
- Power Rating (RMS): 500 W (LF: 500 W, HF: 500 W)
- Peak Power: 1000 W
- Impedance: LF: 4 Ω, HF: 16 Ω
- Frequency Response: 70 Hz – 20 kHz (-10 dB)
- Maximum SPL: 137 dB peak
- Coverage Angle: Horizontal 100°, Vertical adjustable 0–15° (array dependent)

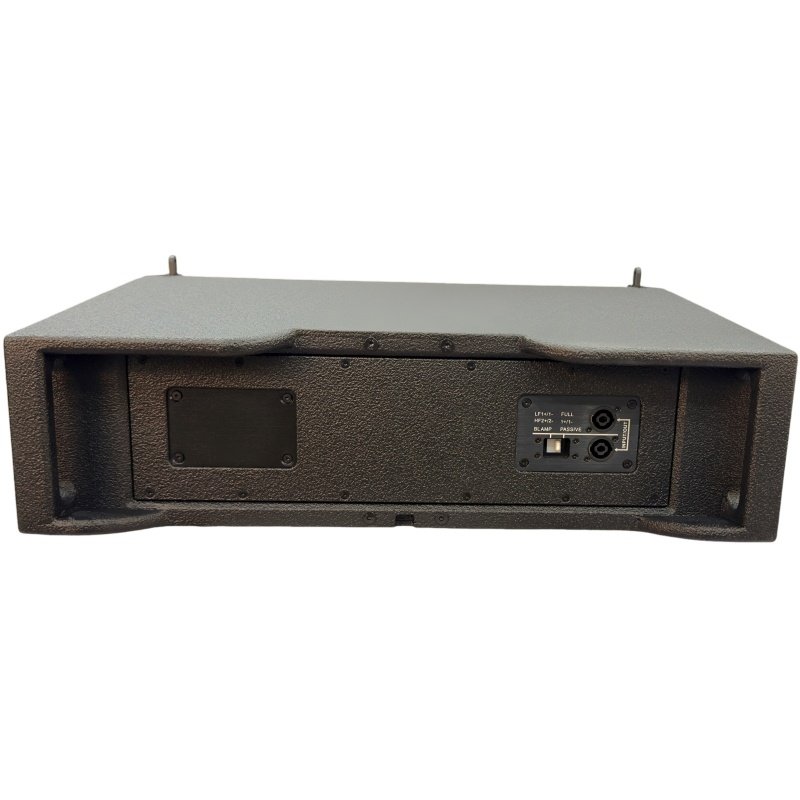

- Connectors: 2 × NL-4 (input and link)
- Crossover: Internal passive crossover with internal/external selectable mode
- Rigging: 3-point quick-lock rigging system, supports stacking and flying
- Enclosure Material: Birch plywood
- Dimensions (H × W × D): 256 × 635 × 375 mm
- Weight: 17 kg
V-Series Line Array Applications
1. Theaters / Auditoriums / Churches
Advantages: Exceptional speech intelligibility, clean and articulate vocal reproduction without muddiness.
2. Small to Medium Multi-Purpose Halls / Hotel Ballrooms / High-End Smart Conference Rooms / Lecture Halls
Advantages: Unique vertical directivity control reduces ceiling reflections for crystal-clear speech. Elegant design seamlessly blends into weddings, corporate dinners, and other high-end events.
3. Small Outdoor Tours / Product Launches / Roadshows / Fill-in for Large Systems
Advantages: One person can load, two can rig – significantly reducing handling costs for rental companies. Performance far exceeds traditional full-range speakers. Compact size makes it ideal for side-fill and covering blind spots.
