| Parameter | Specification |
|---|---|
| Type | Active 2-Way Line Array Speaker |
| Woofer | 2 x 10″ NdFeB (Neodymium) |
| Tweeter | 1 x 3″ Titanium Compression Driver |
| Peak Power | 1400 W |
| Rated Power | 700 W RMS |
| Impedance | 4 Ω |
| Built-in Amplifier | 2200 W Class-D |
| Frequency Response | 50 Hz – 20 kHz |
| Max SPL | 137 dB |
| Coverage Angle | H 100° x V 15° |
| DSP Processor | 96 kHz / 32-bit |
| Control | RDNET Remote Monitoring & System Management |
| Enclosure Material | Birch Plywood |
| Dimensions (H×W×D) | 310 × 700 × 465 mm |
| Weight | 29 kg |

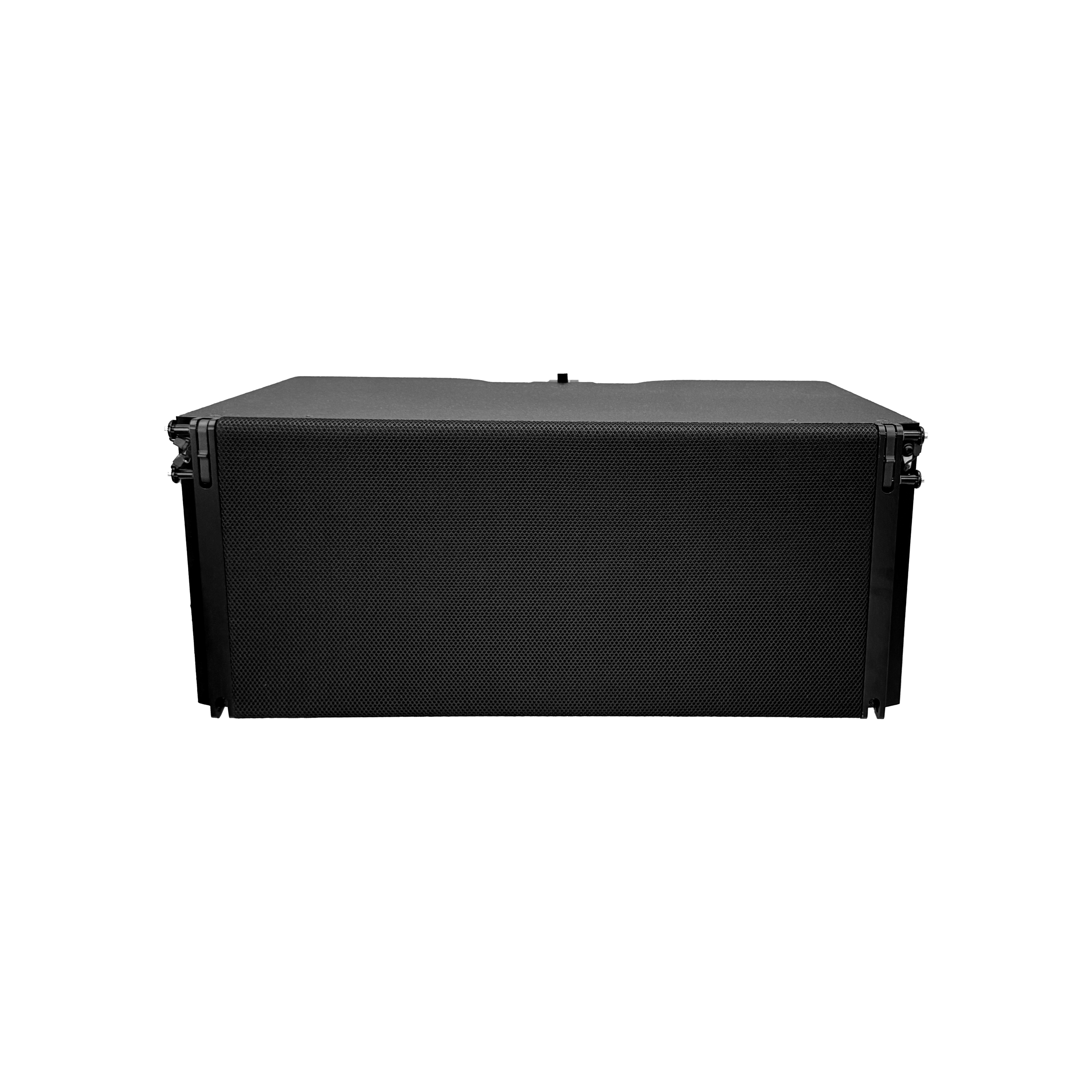

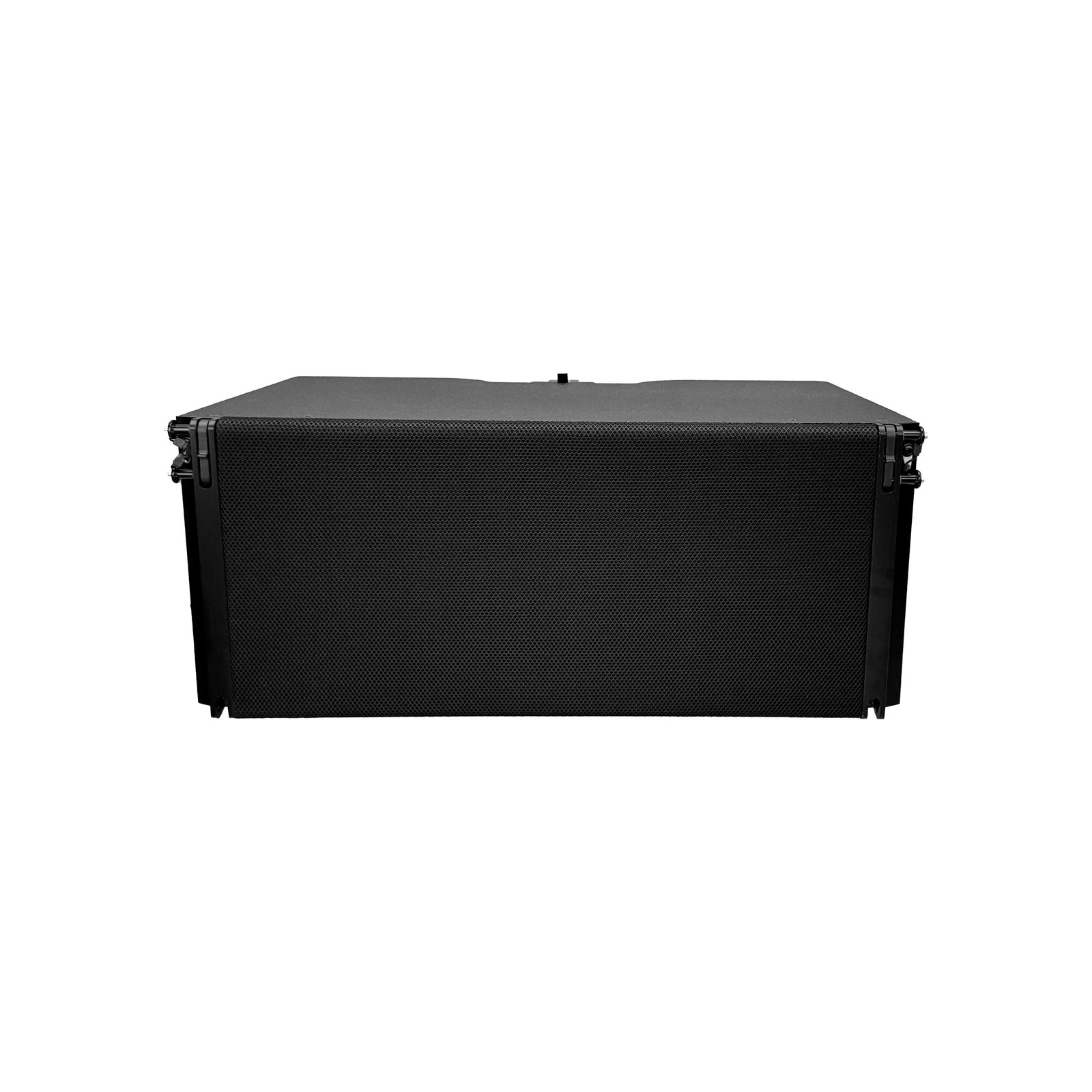

Compact Size, Professional Tour-Grade Sound: Active 2-Way Line Array Speaker
The V-210A is a truly active, high-power, plug-and-play touring sound system. It features a built-in efficient digital amplifier, intelligent DSP processing, FIR filters, and multi-channel tuning, enabling exceptional Sound Pressure Level (SPL) output while reducing power requirements.
Its integrated signal processing and streamlined cabling design significantly speed up and simplify system setup. Furthermore, its compact design minimizes the space required in transport vehicles.
High-Power Class-D Amplifier
SPE’s Class-D amplifier technology delivers superior performance, high efficiency, and lightweight design. The HDL series amplifiers offer fast, accurate transient response and impressive sound quality. Constructed from sturdy machined aluminum, these amplifiers remain secure during transport and facilitate a fanless cooling design. All HDL series amplifiers are equipped with Switch-Mode Power Supply (SMPS) modules, achieving maximum output power while effectively controlling weight.
Features & Details
I. Key Specifications
- Peak Power: 1400 Watts, RMS Power: 700 Watts
- Maximum SPL: 139 dB
- Frequency Response: 70 Hz – 18 kHz
- Driver Configuration: 2 x 10″ Neodymium Woofers, 1 x 3″ Neodymium Compression Driver
- Signal Processing: Powerful built-in processing and DSP technology allows full control over system setup. Optional RDNET box available (with picture).
- Structural Features: Tour-grade, secure, variable mechanical structure
- Enclosure Design: Multi-ply plywood cabinet with exterior polyurea coating, offering water and impact resistance.
II. Product Advantages & Applications
Thanks to meticulous acoustic design, high-specification transducers, and a unique compressed enclosure structure, the V-210A is the preferred choice for many professionals. It excels in live sound reinforcement and is also suitable for permanent installation scenarios demanding high reliability.
The V-210A is the ideal solution when line array performance is required alongside quick and easy setup. Powered by a 1400W peak, 2-way digital amplifier, the sound is processed by a high-performance Digital Signal Processor (DSP). Processing features include line array cluster correction, high-frequency projection correction, and new dedicated presets for indoor environments and installations with large splay angles.
The system incorporates advanced SPE transducers: two high-performance 10″ drivers deliver a solid low-frequency response, while a large-format 3″ voice coil compression driver produces clear vocals and high-definition sound with excellent dynamics.

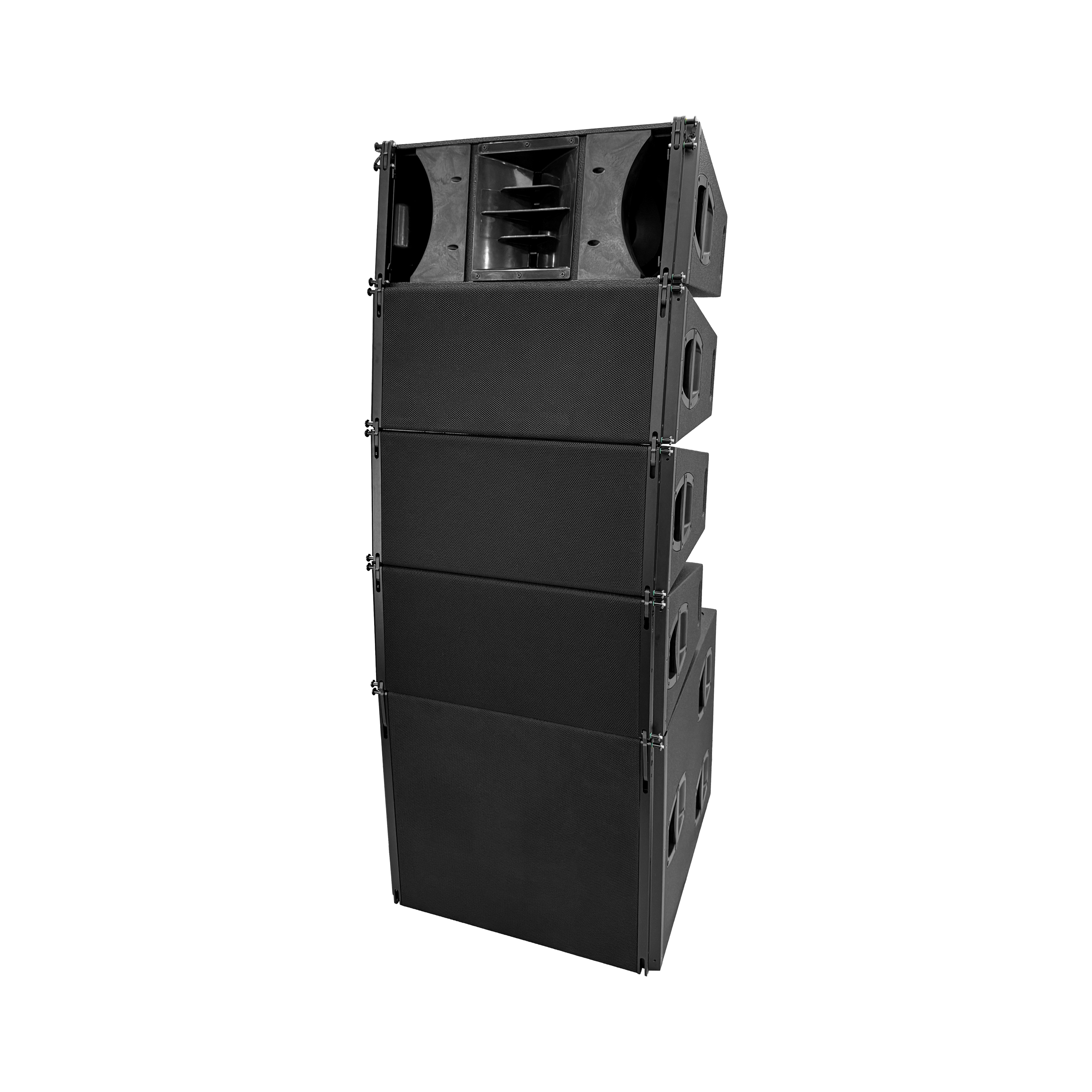

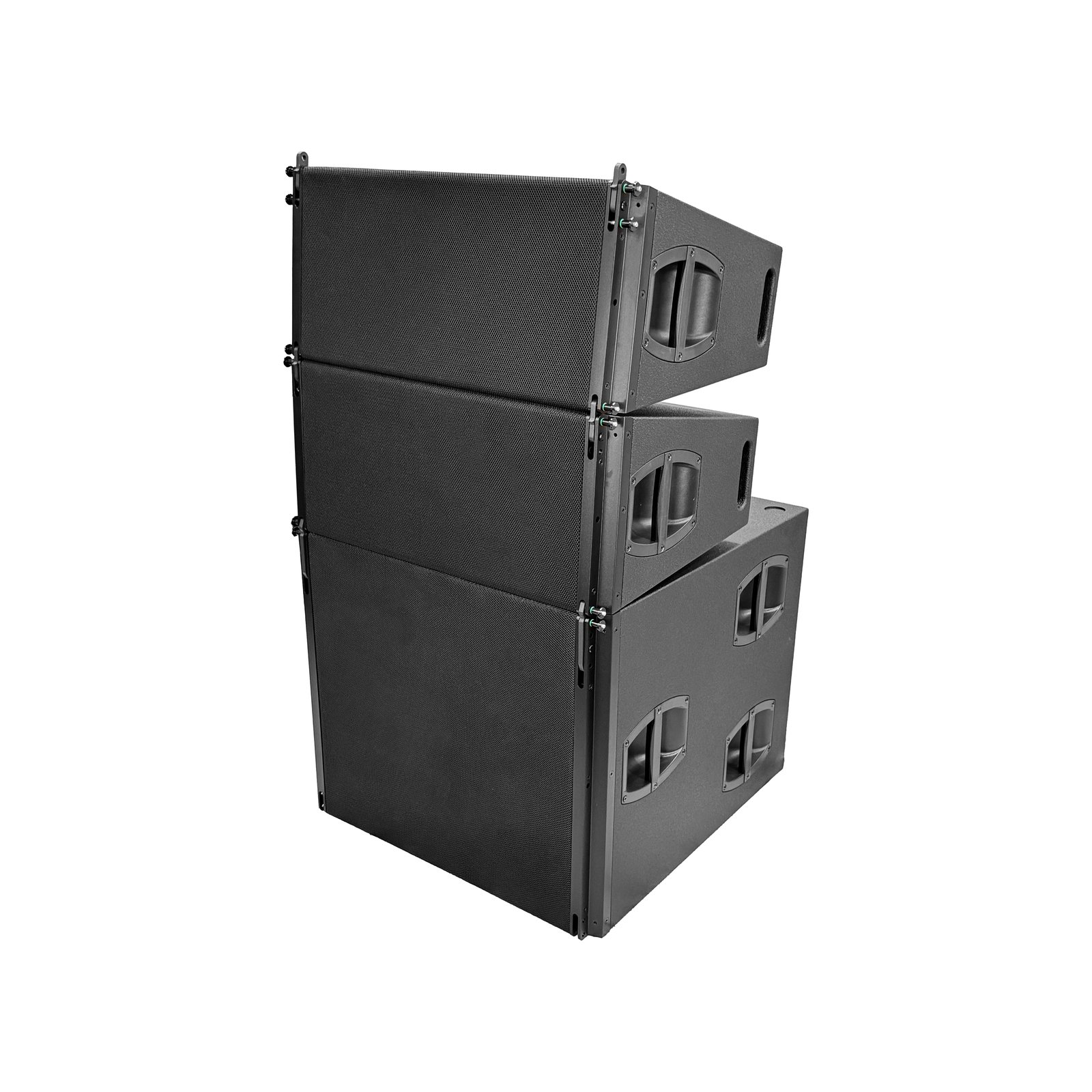

The V-18AS subwoofer is the ideal flyable low-frequency complement to the V-210A line array system, further enhancing the low-end performance.

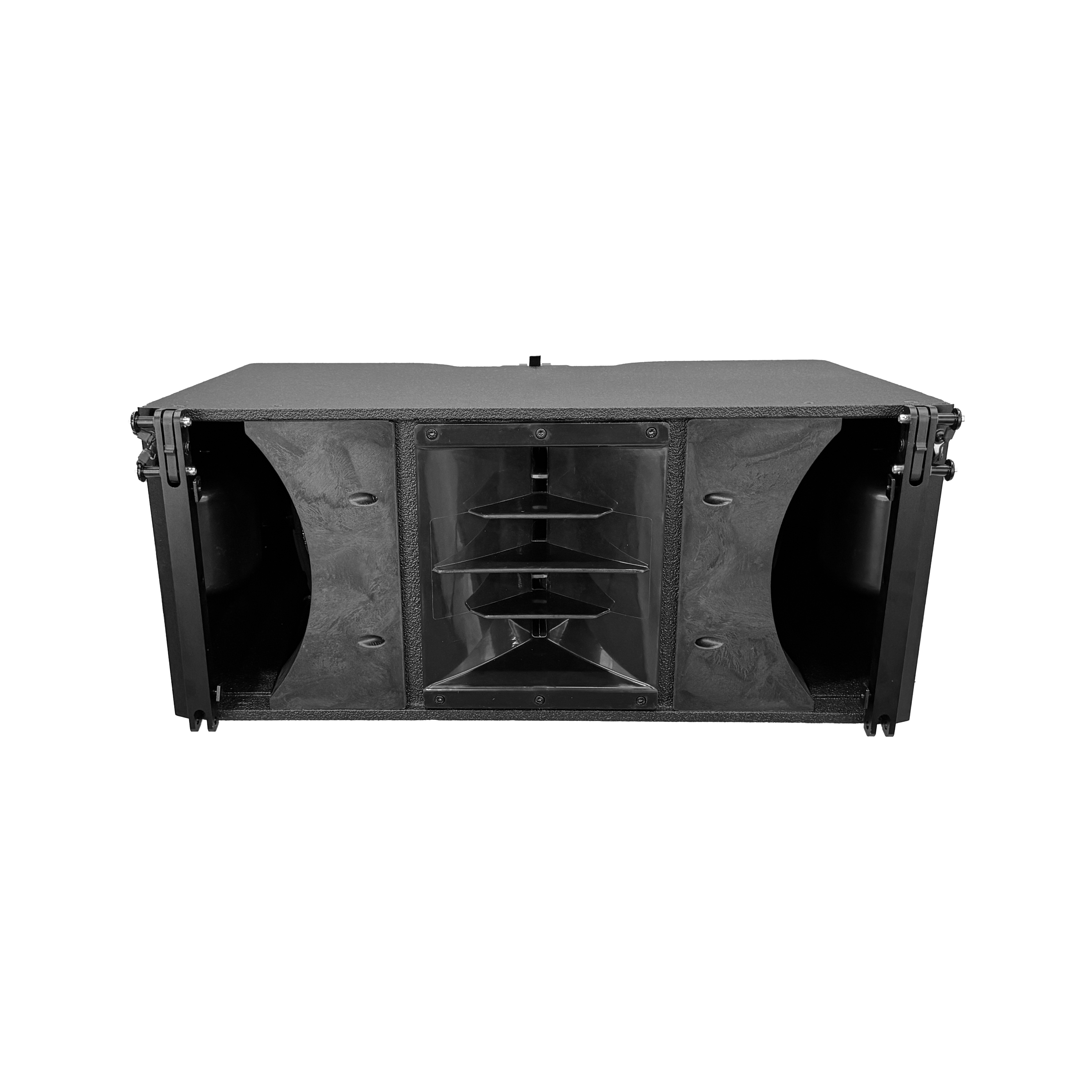

I. High-Frequency Driver
The CD750 large-format compression driver is a core advantage of the V-210A. Its 3-inch voice coil supports an 800 Hz crossover point, allowing nearly the entire vocal range to be reproduced by this single driver. This design enables superior coverage control and diffusion, while significantly improving acoustic efficiency.
II. Low-Frequency Drivers
Utilizing high-power neodymium woofers for efficient, controlled low-frequency reproduction, delivering solid and stable bass. Configuration details:
- Driver Specification: 2 x 10″ Neodymium Woofers with 2.5″ edge-wound voice coils
- Diaphragm Material: Water-resistant coated fibre material
- Surround: Poly-cotton M-shaped roll surround
- Motor Structure: Ultra-ventilated motor structure
Acoustical Specifications
| Category | Specific Parameters |
|---|---|
| Frequency Response | 70 Hz – 18,000 Hz (CUT 70 Hz – 18,000 Hz) |
| Max SPL @ 1m | 139 dB |
| Horizontal Coverage | 100° |
| Vertical Coverage | 14° |
| Transducers | HF: 1 x 2.0” diaphragm, 3.0” voice coil compression driver |
| LF: 2 x 10” diaphragm, 2.5” voice coil woofers |
Input / Output Section
| Category | Specific Parameters |
|---|---|
| Input Signal Type | Balanced / Unbalanced |
| Input Connectors | XLR |
| Output Connectors | XLR |
| Input Sensitivity | -2 dBu / +4 dBu |
Processor Section
| Category | Specific Parameters |
|---|---|
| Crossover Frequency | 800 Hz |
| Protection | Thermal, RMS |
| Limiter | Soft Limiter |
| Control Functions | Line array cluster control; compatible with control box enabling systems of up to 48 channels, with each channel controlling up to 12 HDL V210As. System allows arbitrary routing and combination. |
Power Section
| Category | Specific Parameters |
|---|---|
| Total Power | 1400 W Peak, 700 W RMS |
| HF Power | 400 W Peak, 200 W RMS |
| LF Power | 1000 W Peak, 500 W RMS |
| Cooling | Convection cooling with additional built-in auxiliary fan |
| Power Connectors | Powercon INPUT/OUTPUT; supports worldwide voltage selection |
| Compliance | Safety: CE compliant |
Physical Specifications
| Category | Specific Parameters |
|---|---|
| Enclosure Material | Multi-ply plywood with exterior polyurea, water and impact resistant coating |
| Flying Hardware | Line array rigging system |

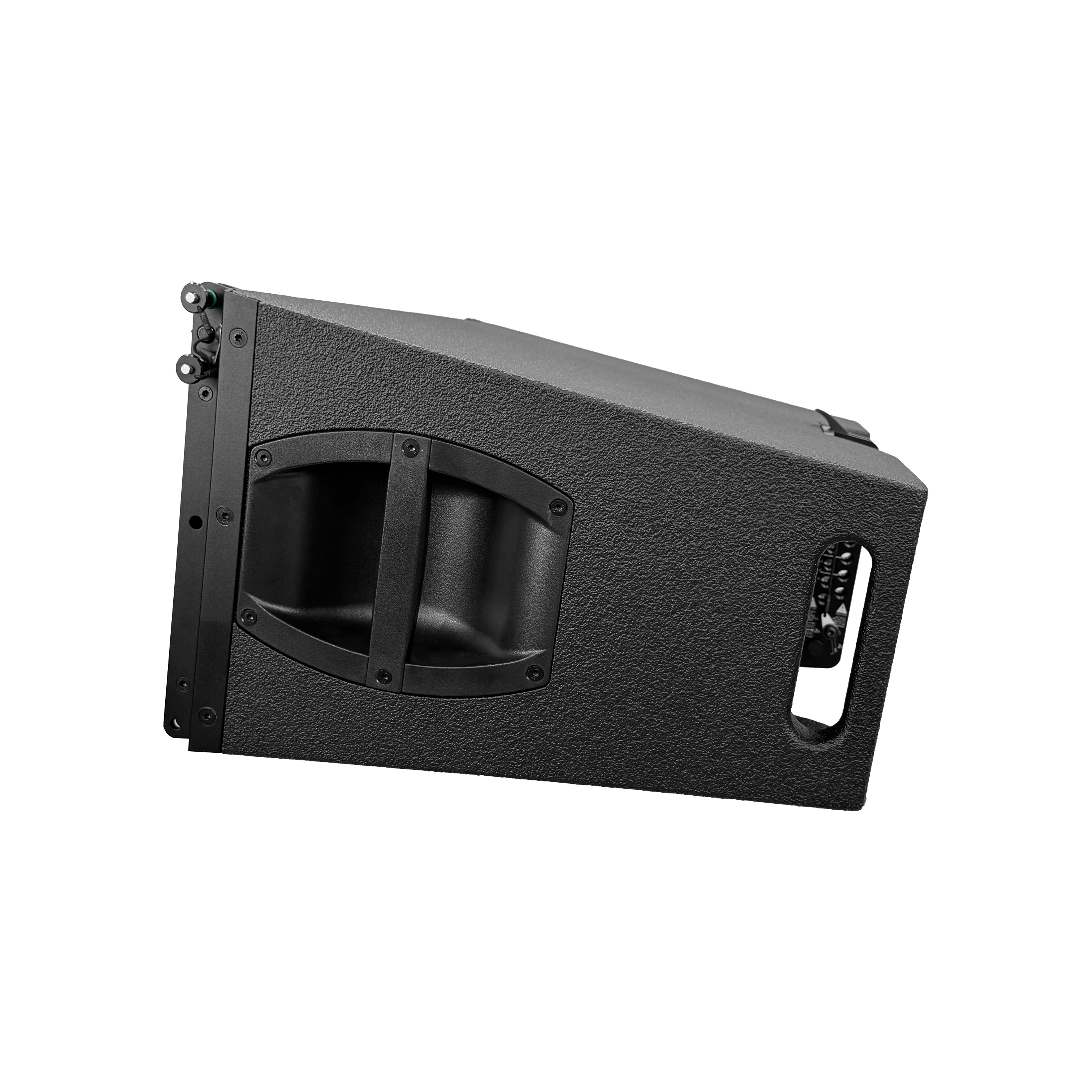

| Handles | 2 side handles |
| Grille | Steel protective grille |
| Color | Black |
